MK180 Water Well Drilling Rig

Product Gallery

Product Overview

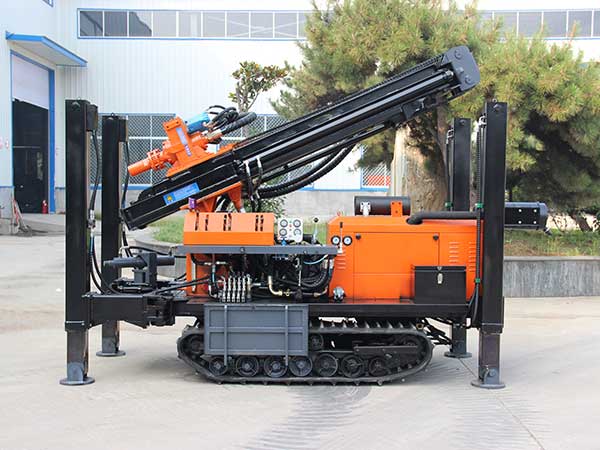

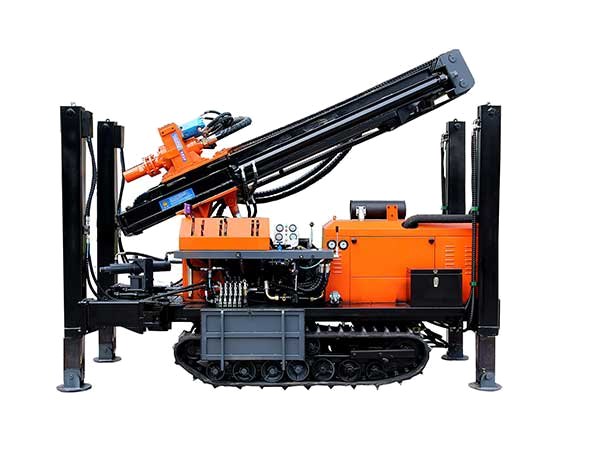

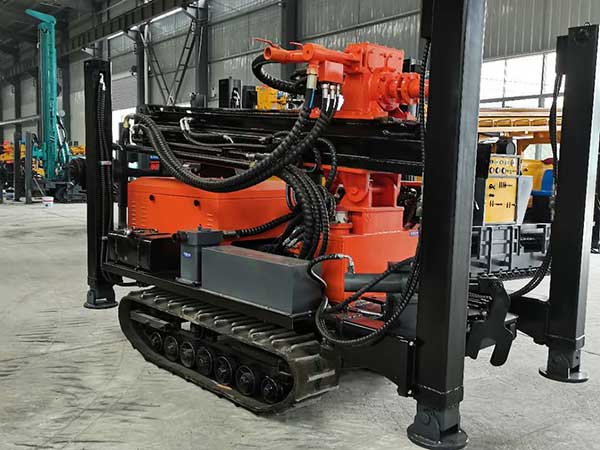

The MK180 uses a 55KW Quanchai turbocharged engine and dual rotary motors to provide strong power, rotary torque, and speed. It can drill to 180m with a maximum drilling diameter of 10 inches/254mm and supports drilling with either an air compressor or a mud pump.

Its rubber crawler chassis is suitable for travelling on urban and rural roads while reducing damage to the ground. The MK180 is an efficient, multifunctional rig for water wells, irrigation wells, mountain areas, rock foundations, and other borehole applications. Its hydraulic system combines high-torque motor rotation with large-bore hydraulic-cylinder feed.

Key Features

• Stable hydraulic control: walking, rotation, feed, lifting, outriggers, and rod unloading are hydraulically controlled.
• Energy-efficient system: a dedicated gearbox, independent oil pump, and balanced hydraulic distribution simplify maintenance and reduce operating cost.
• Easy maintenance: the main boom includes an oil-filling point for routine lubrication.
• Durable chassis: the travel motor uses a reducer, while the excavator-style crawler chassis provides load capacity and stability.
• Hammer lubrication: an integrated lubricating device helps extend DTH hammer service life.
• Convenient handling: extended hydraulic outriggers assist with loading, unloading, levelling, and repositioning.

Applications And Options

Suitable applications include farms, irrigation, geothermal drilling, construction, and drinking-water wells. The specification table marks the winch, electric welding machine, foam pump and mud pump as optional, and lists no ladder. A hammer lifter, hammer transport bracket and water/air dual-purpose quick valve are described as optional accessories. Confirm all inclusions and options in the offered configuration.

Discuss drilling-depth requirements and request the offered warranty, technical guidance, operating instructions and spare-parts documentation. Confirm availability and service terms for the specific model and destination in the quotation.

Planning An Enquiry For MK180 Water Well Drilling Rig

The following information supplements the product record. It is planning guidance, not additional model specifications or a confirmed equipment match.

Read The Model Data In Context

Use the listed depth, diameter, engine and handling information as separate inputs to an enquiry. A drilling-depth value does not predict progress or a completed well under every ground condition. State the intended method and actual borehole requirement before comparing models.

Check The Supporting Equipment

Identify the compressor or mud circulation equipment required by the proposed method, and list any equipment already owned. Check rods, hammer, bits, connections and the accessories requested in the quotation. Optional equipment and pictured components should not be assumed to be included.

Prepare The Configuration Request

Include the destination, target depth, borehole diameter, ground information, access restrictions and required equipment scope. Ask for the current configuration sheet and a written list of inclusions. Mark unknown conditions rather than replacing them with guessed values.

Related Planning Resources

• Water Well Drilling Planning
• Planning A Water Well Drilling Enquiry? Start With These Details.
• Water Well Drilling Configuration

Discuss This Equipment

Full Specifications

Confirm the final configuration and current specification sheet with our team before ordering.
