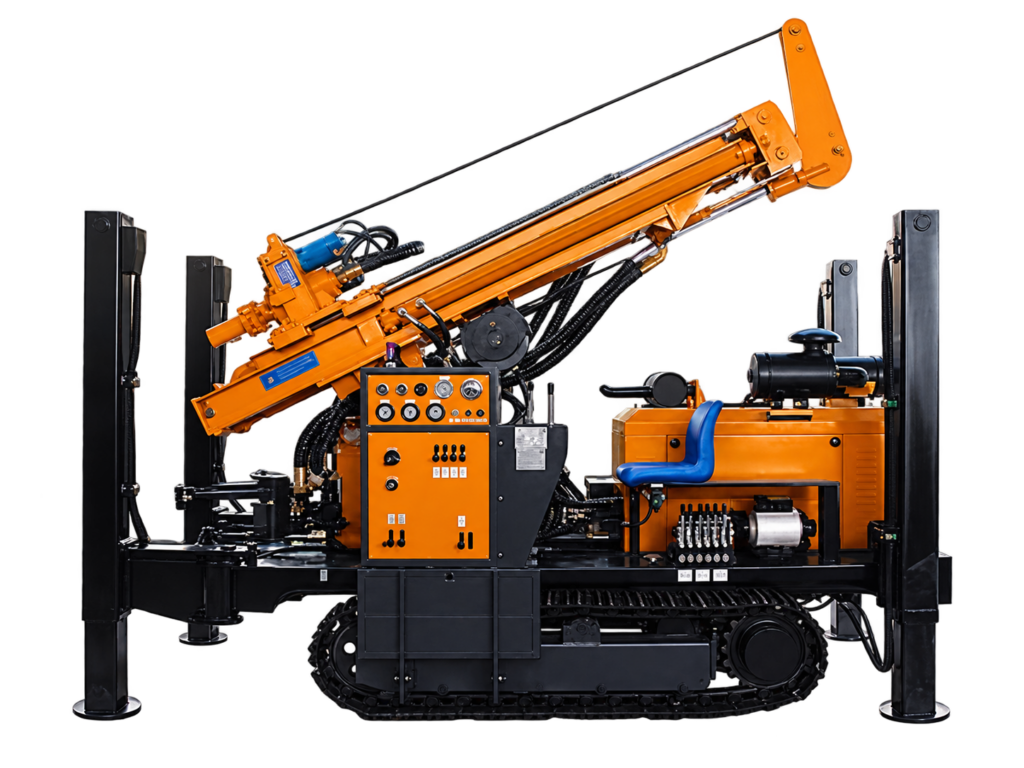

MK200 Water Well Drilling Rig

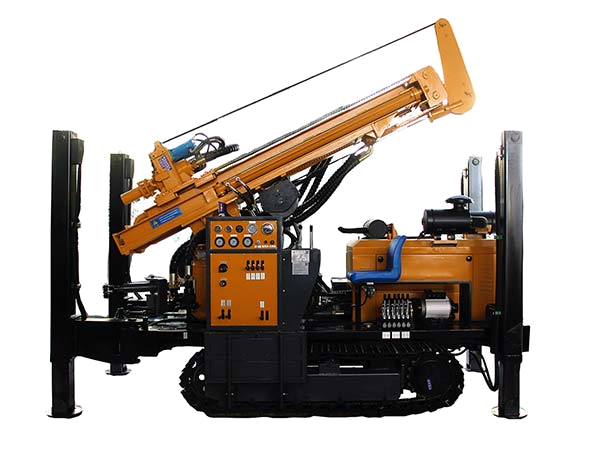

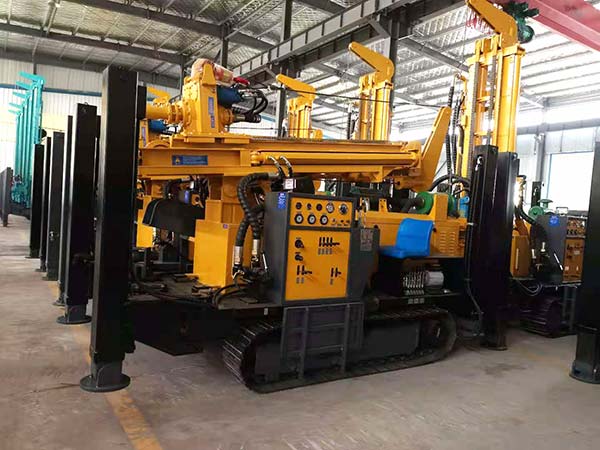

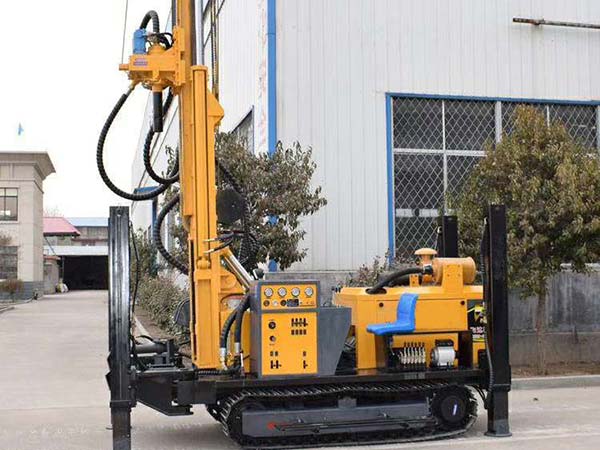

Product Gallery

Model Information

The MK200 has a listed drilling depth of 200 m, a 70 kW engine and a 140–305 mm hole-diameter range. Confirm the final configuration for your drilling task.

Product Overview

The MK200 uses a 70KW Yuchai turbocharged engine and dual rotary motors to provide strong power, rotary torque, and speed. The model description lists a drilling depth of 200m and a maximum drilling diameter of 12 inches/305mm. The rig supports drilling with either an air compressor or a mud pump.

The MK200 is an efficient, multifunctional rig for water wells, irrigation wells, mountain areas, rock foundations, and other boreholes. Its hydraulic system combines high-torque motor rotation with large-bore hydraulic-cylinder feed.

Key Features

• Stable hydraulic control: walking, rotation, feed, lifting, outriggers, and rod unloading are hydraulically controlled.
• Energy-efficient system: a dedicated gearbox, independent oil pump, and balanced hydraulic distribution simplify maintenance and reduce operating cost.
• Easy maintenance: the main boom includes an oil-filling point for routine lubrication.
• Durable chassis: the travel motor uses a reducer, while the excavator-style crawler chassis provides load capacity and stability.
• Hammer lubrication: an integrated lubricating device helps extend DTH hammer service life.
• Convenient handling: extended hydraulic outriggers assist with loading, unloading, levelling, and repositioning.

Applications And Options

Suitable applications include farms, irrigation, geothermal drilling, construction, and drinking-water wells. The specification table lists a 1.5T winch and an electric welding machine; the foam pump and mud pump are optional, and no ladder is listed. A hammer lifter, hammer transport bracket and water/air dual-purpose quick valve are described as optional accessories. Confirm all inclusions and options in the offered configuration.

Confirm included equipment, optional accessories and service terms in the quotation for the requested configuration.

Planning An Enquiry For MK200 Water Well Drilling Rig

The following information supplements the product record. It is planning guidance, not additional model specifications or a confirmed equipment match.

Read The Model Data In Context

Use the listed depth, diameter, engine and handling information as separate inputs to an enquiry. A drilling-depth value does not predict progress or a completed well under every ground condition. State the intended method and actual borehole requirement before comparing models.

Check The Supporting Equipment

Identify the compressor or mud circulation equipment required by the proposed method, and list any equipment already owned. Check rods, hammer, bits, connections and the accessories requested in the quotation. Optional equipment and pictured components should not be assumed to be included.

Prepare The Configuration Request

Include the destination, target depth, borehole diameter, ground information, access restrictions and required equipment scope. Ask for the current configuration sheet and a written list of inclusions. Mark unknown conditions rather than replacing them with guessed values.

Related Planning Resources

• Water Well Drilling Planning
• Planning A Water Well Drilling Enquiry? Start With These Details.
• Water Well Drilling Configuration

Discuss This Equipment

Full Specifications

Confirm the final configuration and current specification sheet with our team before ordering.
