Product Overview

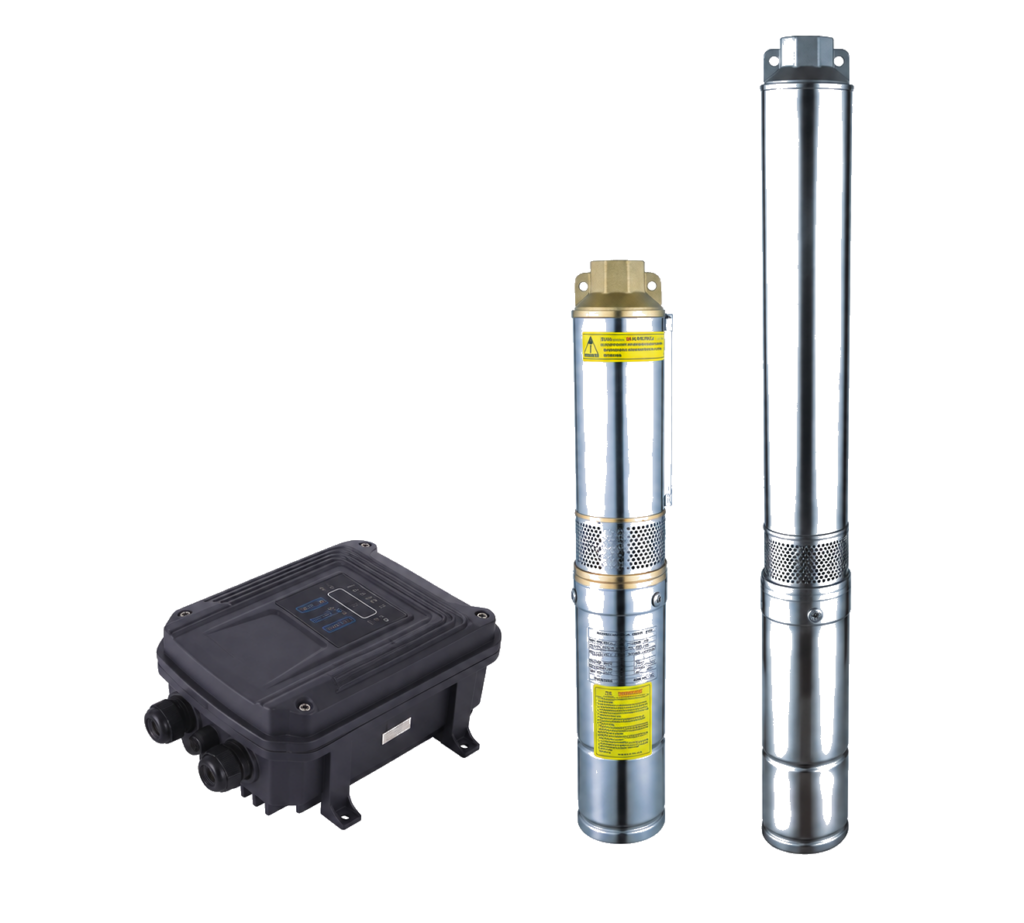

MK solar and submersible pump systems provide water where grid power is unavailable or unreliable. A system normally includes a pump, controller or inverter and a photovoltaic array selected for the pump voltage and power.
Common Construction and Controller Features
- Permanent-magnet brushless synchronous motor on applicable submersible impeller models
- Stainless-steel components on applicable models
- Water-shortage protection and MPPT controller functions where listed
- Automatic start/stop and operating-status display where listed
- Soft-start, voltage, over-current and overload protection where listed
Model Variants
This family contains 10 listed variants. Availability and final configuration must be confirmed before quotation.
Swipe the table to view all columns. Keyboard users: focus the table and use the arrow keys.
| Family | Listed Model | Pump power (kW) | Panel power (W) | Rated / max. flow (m³/h) | Rated / max. head (m) | Outlet diameter (in) | Pump diameter (in) | Pump voltage | DC voltage range | Pump height (mm) | Panel suggestion |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8/10-inch AC/DC | 8FLA80-26-7.5 | 7.5 | 11000 | 80/120 | 26/40 | 5 | 8 | AC380V/DC540V | 350-800V | 1235 | 17x200W panels VOC36V in series with 3 parallel strings |
| 8/10-inch AC/DC | 8FLA80-39-11 | 11 | 15750 | 80/120 | 39/60 | 5 | 8 | AC380V/DC540V | 350-800V | 1400 | 21x250W panels VOC30V in series with 3 parallel strings |
| 8/10-inch AC/DC | 8FLA80-52-15 | 15 | 22500 | 80/120 | 52/80 | 5 | 8 | AC380V/DC540V | 350-800V | 1610 | 18x250W panels VOC36V in series with 5 parallel strings |
| 8/10-inch AC/DC | 8FLA80-78-22 | 22 | 31550 | 80/120 | 78/120 | 5 | 8 | AC380V/DC540V | 350-800V | 1980 | 18x250W panels VOC30V in series with 7 parallel strings |
| 8/10-inch AC/DC | 8FLA95-23-9 | 9 | 13500 | 95/140 | 23/41 | 5 | 8 | AC380V/DC540V | 350-800V | 1875 | 18x250W panels VOC36V in series with 4 parallel strings |
| 8/10-inch AC/DC | 8FLA95-58-22 | 22 | 31550 | 95/140 | 58/100 | 5 | 8 | AC380V/DC540V | 350-800V | 1875 | 18x250W panels VOC36V in series with 7 parallel strings |
| 8/10-inch AC/DC | 8FLA95-84-30 | 30 | 40800 | 95/140 | 84/160 | 5 | 8 | AC380V/DC540V | 350-800V | 2285 | 17x300W panels VOC36V in series with 8 parallel strings |
| 8/10-inch AC/DC | 10FLA125-20-11 | 11 | 15750 | 125/200 | 20/30 | 6 | 10 | AC380V/DC540V | 350-800V | 1405 | 21x250W panels VOC30V in series with 3 parallel strings |
| 8/10-inch AC/DC | 10FLA125-40-22 | 22 | 31550 | 125/200 | 40/60 | 6 | 10 | AC380V/DC550V | 350-800V | 1835 | 18x250W panels VOC30V in series with 7 parallel strings |
| 8/10-inch AC/DC | 10FLA125-60-30 | 30 | 40800 | 125/200 | 60/85 | 6 | 10 | AC380V/DC550V | 350-800V | 2135 | 17x300W panels VOC36V in series with 8 parallel strings |
Planning An Enquiry For MK 8/10-Inch AC/DC Solar Well Pump
The following information supplements the product record. It is planning guidance, not additional model specifications or a confirmed equipment match.
Use The Installation And Duty Together
Identify the water source, required flow, delivery elevation, water level during pumping where relevant, pipe route and outlet pressure requirement. Surface pumps, borehole pumps and aeration equipment serve different tasks; confirm the product family before selecting a variant.
Read Variant Tables Carefully
Where rated and maximum values are listed, keep their meanings separate. Maximum head and maximum flow should not be combined into an assumed duty point. Ask for the relevant curve and installation review for the proposed variant.
Keep Power And Accessories In Scope
Provide the available supply and control arrangement, or describe the solar installation being considered. Confirm the pump, motor, controller, cable, protection and any photovoltaic equipment included. Do not assume that a complete power system is supplied with every listed pump.
Related Planning Resources
Full Specifications
Confirm the final configuration and current specification sheet with our team before ordering.
Swipe the table to view all columns. Keyboard users: focus the table and use the arrow keys.
| Specification | Value |
|---|---|
| Listed Variants | 10 |
